WSI processing

The Bioptimus SDK’s WSI factory provides uniform access to whole-slide images, automatically selecting the best available backend. Supported backends (auto-selected, in order of preference):

CuCIM — GPU-accelerated reading, used when available.
OpenSlide — CPU fallback, broad format support.

Supported formats include .svs, .tiff, .tif, .ndpi, .vms, .vsi, .scn, .mrxs, and .jp2 (subject to the active backend).

Open a slide

from bioptimus.io.wsi import WSI, Level, MPP, Magnification, MeasurementUnit

wsi = WSI("/data/wsi/tcga_coad.svs")
print(wsi.level_count)                      # pyramid levels (0 = highest resolution)
print(wsi.level_dimensions(Level(0)))       # base dimensions
print(wsi.mpp)                              # microns per pixel at level 0

Properties

Slides carry rich scanning metadata. Access it through props, and inspect the pyramid with level_dimensions and level_downsample.

props = wsi.props
print(props.SCANNER)          # scanning device
print(props.OBJECTIVE_POWER)  # objective magnification (e.g. 40)
print(props.MPP_X, props.MPP_Y)

# Per-level pyramid structure:
for level in range(wsi.level_count):
    dims = wsi.level_dimensions(Level(level))
    ds = wsi.level_downsample(Level(level))
    print(f"Level {level}: {dims.width}x{dims.height} (downsample {ds:.1f}x)")

Bounded vs. unbounded

Scanners capture the whole slide, but tissue occupies only part of it. bounded=True returns the tissue area; bounded=False returns the full slide.

tissue = wsi.dimensions(bounded=True)    # tissue area only
full   = wsi.dimensions(bounded=False)   # entire slide

Read a region

Specify resolution three ways — by pyramid Level, by physical MPP, or by Magnification — and choose pixel or micrometer units.

# By pyramid level, size in pixels (Level 2 ≈ 16× downsample), tissue-bounded:
region_px = wsi.read_region(location=(1625, 0), size=(1200, 1200),
                            resolution=Level(2),
                            measurement_unit=MeasurementUnit.PIXELS, bounded=True)

# The same window requested in micrometers (physical units):
region_um = wsi.read_region(location=(1625, 0), size=(599.0, 599.0),
                            resolution=Level(2),
                            measurement_unit=MeasurementUnit.UM, bounded=True)

img = region_px.image       # PIL image
print(region_px.image.size, region_px.resolution)

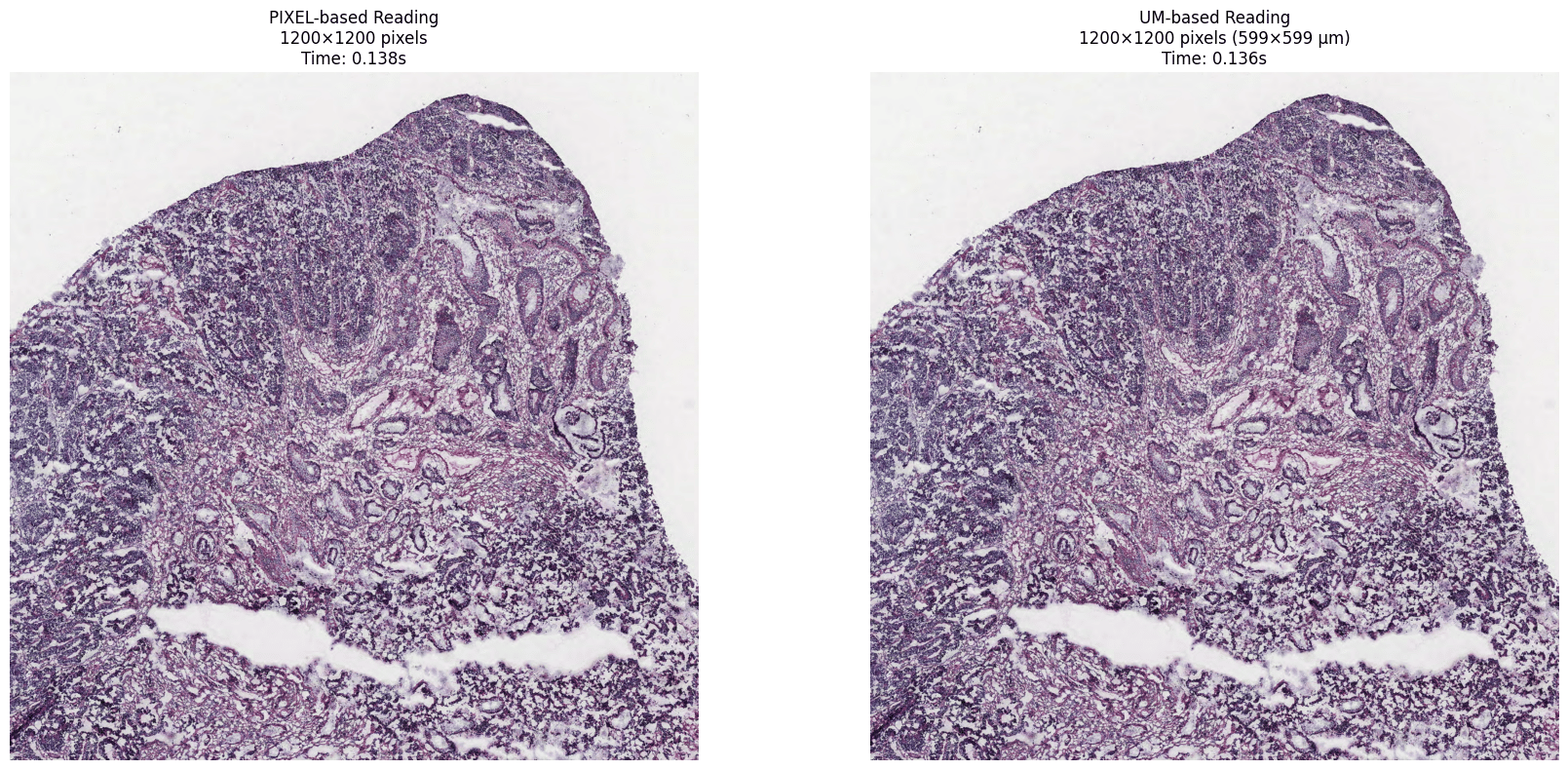

Region read in pixels versus micrometers, side by side — The same window read by pixel size vs. physical (µm) size at pyramid level 2 on a TCGA-COAD slide — both yield a matching 1200×1200 px crop. Representative example.

MPP ≈ 10 / magnification (40× ≈ 0.25 MPP, 20× ≈ 0.5 MPP, 10× ≈ 1.0 MPP). Bioptimus embeddings use 0.5 MPP; tissue segmentation uses 8 MPP.

Thumbnails & associated images

thumb = wsi.get_thumbnail(size=(512, 512), bounded=False)  # PIL image
images = wsi.associated_images                             # {'thumbnail','label','macro'}
macro = images["macro"]                                    # slide-level macro photograph
props = wsi.props                                          # scanner, objective, MPP_X/Y, ...

size is an upper bound: the aspect ratio is preserved, so the longer side is fit to the requested dimension and the shorter side scaled down proportionally. This slide is slightly taller than wide, so requesting (512, 512) yields 486×512 px rather than an exact 512×512.

Whole-slide image thumbnail — Generated thumbnail (unbounded, 486×512 px) of a TCGA-COAD diagnostic slide (56,640 × 59,636 px at 0.25 µm/px, 40× Aperio). Representative example.

Macro associated image of the whole slide — Macro associated image — a low-magnification photograph of the whole slide, including the label. Representative example (TCGA-COAD).

For inference you don’t usually call the reader directly — the Inference pipeline and SlideInference handle tiling. Use the reader for QC, custom region extraction, or building your own pipelines.
